Rosemount Manifolds

social media
  • Factory assembled, leak-tested, and calibrated
  • Full breadth of offering including integral, conventional, and in-line designs
  • Integral design enables “flangeless” valve integration
  • 2, 3, and 5-valve configurations
  • Compact, lightweight design
  • Easy in-process calibration
  • Direct-mount capability

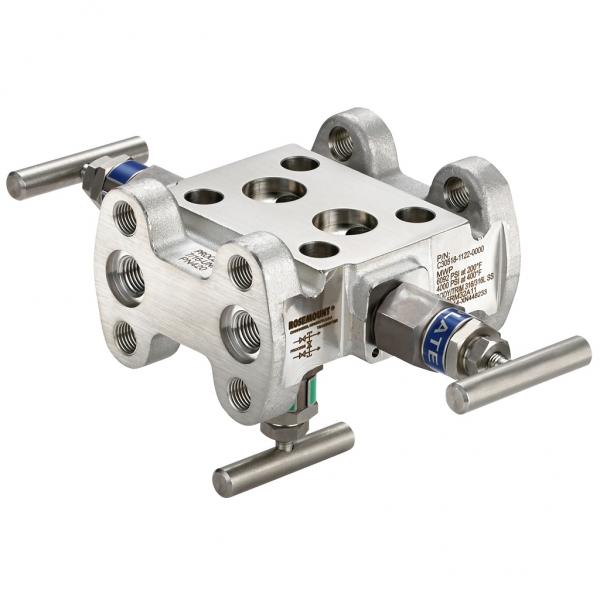

Rosemount 305 Integral Manifold

  • Assembles directly to transmitter, eliminating need for flange
  • 2, 3, and 5-valve configuration
  • Available in Coplanar™ and traditional styles
  • Compact, lightweight assembly
  • Factory assembled, seal-tested, and calibrated
  • 50% fewer leak points than conventional transmitter/flange/manifold interface
More Less



Rosemount 304 Conventional Manifold



  • Attaches to transmitter flange
  • 2, 3, and 5-valve configurations
  • Traditional (Flange x Flange, Flange x NPT) & Wafer styles
  • Factory assembled, seal-tested, and calibrated
More Less



Rosemount 306 In-Line Manifold



  • Assembled directly to in-line pressure transmitters
  • Block-and-Bleed and 2-valve configurations
  • Male or female threaded NPT process connection
More Less
