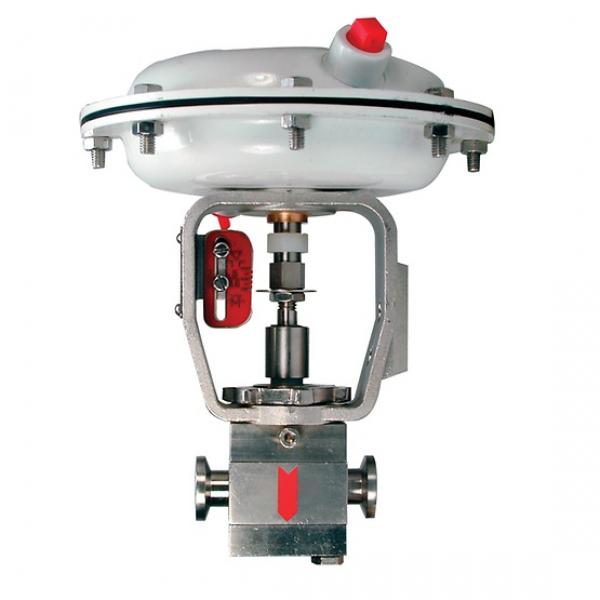

Sanitary Valves

social media

Sanitary valves are designed to meet the stringent demands of today’s state-of-the-art Life Science facilities.  Polished, stainless steel body and trim components ensure efficient cleaning and sanitizing giving you confidence that your processing environment produces the highest purity



Fisher® Baumann™ 83000

Baumann™ Packless micro-flow sanitary control valve.

Size: NPS 1/2
Connections: Tri-Clamp or optional welding ends
Body Material: 316L SS
Valve Body Rating: 275 psig CWP
Trim Material: Polished 316 SS, or N10276 Nickel Alloy
Trim Characteristic: Modified Equal %
Seat Leakage: ANSI/FCI 70-2 Class IV
Cv Ratings: 0.01 to 0.70
Bonnet Type: Standard bolted
Packing Material: Packless

Temperature Range: -18oC to 149oC  (0oF to 300oF)

More Less



Fisher® Baumann™ 84000

Baumann™ 84000 high rangeability sanitary aseptic closure diaphragm control valve.

Sizes: NPS 1, 1-1/2, 2
Connections: Tri-Clamp or optional welding ends
Body Material: 316L SS
Valve Body Rating: 150 psig CWP
Trim Material: PTFE covered EPDM elastomer
Trim Characteristic: Modified Equal %
Seat Leakage: ANSI/FCI 70-2 Class VI
Cv Ratings: 2 to 43
Bonnet Type: Standard bolted (NPS 1), or quick release clamped (NPS 1-1/2 & 2)
Packing Material: Packless
Temperature Range: -18oC to 160oC  (0oF to 320oF)
Meets 3A standard specifications

More Less



Fisher® Baumann™ 85000

Baumann 85000 sanitary pinch valves  are intended for use with up to 3/4 inch O.D. pharmaceutical grade tubing. They are designed to couple FIELDVUE™ digital valve controller intelligence with a linear actuator and tube shell.

The 85000 is designed for use in both biotechnology and pharmaceutical industries, where cleanliness and sterility are required. The primary use is for disposable skid-based processes, replacing traditional manually operated valves. Automated valves offer consistent quality, better record keeping, and improved batch control.

Lab testing resulted in a max capacity of 6.5 Cv achieved with standard pharmaceutical grade tubing.

More Less

Fisher® Baumann™ 87000


Baumann™ 87000 sanitary aseptic low flow control valve is suited for particulants in the flow stream.

Size: NPS 1/2, 18.9 bar CWP (275 psi CWP)
Connections: Tri-Clamp or optional welding ends
Body Material: 316L SS
Valve Body Rating: 275 psi CWP
Trim Material: EPDM, VMQ (Silicone), FKM (Fluorocarbon), FFKM (PerFluoroelastomer)
Trim Characteristic: Modified Linear
Seat Leakage: ANSI/FCI 70-2 Class VI
Cv Ratings: 0.25 to 1.25
Bonnet Type: Standard bolted
Packing Material: Packless
Temperature Range: -18oC to 232oC  (0oF to 450oF)
Meets 3A standard specifications

More Less

Fisher® Baumann™ 89000

Baumann™ 89000 sanitary control valve with high lift metal plug suitable for the Life Science and Food & Beverage Industries

Size: NPS 1/2 thru 6
Connections: Tri-Clamp standard (Weld Ends, ISO Clamps and others available)
Body Material: 316L SS
Valve Body Rating:  250 psi
Trim Material: 316L SS (Class IV)
Trim Characteristic:  Modified Equal Percentage
Seat Leakage: ANSI/FCI 70-2, Class IV (Metal Seat)
Cv Ratings: 0.20 to 442
Bonnet Type: Tri-Clamp
Packing Material: EPDM O-Ring Standard
Temperature Range:

Fluids & Gases (Non-Steam):  275oF
Steam:  320oF

More Less
